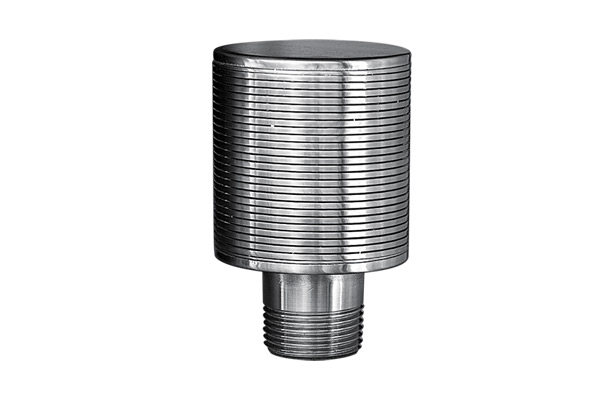

Threaded nozzle
Specify the complete thread designation, male or female connection, engagement length and sealing method.
CUSTOM SCREEN ENQUIRY
Wedge Wire Filter Nozzles
Filter nozzles combine a wedge wire screening head with a mounting connection for media retention, collection or distribution. Discuss threaded and toggle bolt configurations using the filter-floor drawing, media data and service / backwash conditions.
- Screen form
- Threaded & toggle bolt nozzles
- Specification
- Drawing and process requirements reviewed for each enquiry
- Supply scope
- Custom nozzle enquiry. Screen head, stem, fixing parts and sealing details are defined on the agreed drawing.
Price, minimum order quantity, sample arrangements, packing and lead time are confirmed in the quotation.
Configurations to discuss

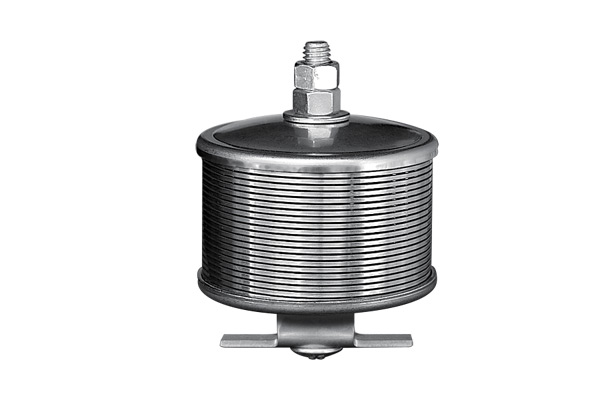

Toggle bolt nozzle
Useful to review when access below the filter floor is restricted. Provide the mounting hole, floor thickness and available clearance.
Specification and drawing checklist
These are the inputs needed to assess the screen. Final dimensions, material, slot and tolerances follow the accepted quotation and approved drawing.
| Parameter | Specify with your enquiry |
|---|---|
| Screen head | Head diameter, effective screen length and overall envelope. |
| Slot & media | Required slot opening and tolerance, media type and smallest particle to retain. |
| Material | Required stainless grade and compatibility with the process and cleaning medium. |
| Thread designation | State NPT, BSPT, BSPP or another standard, nominal size and male / female form. They are not interchangeable. |
| Mounting dimensions | Hole diameter, floor or tube-sheet thickness, gasket seat and nut / bolt access. |
| Service flow | Flow per nozzle, number of nozzles, operating direction and permitted headloss. |
| Backwash conditions | Water / air backwash rates, direction, pressure difference and operating sequence. |
| Assembly scope | Screen head, stem, fasteners, seals and any testing or inspection documents required. |
North American drawings: keep the drawing's original units. Identify inches or millimeters, flow in GPM or m³/h, and pressure difference in psi, bar or kPa. Mark the complete pipe thread or flange standard where relevant.
For North American enquiries, write the complete requested NPT size and form. A nominal pipe thread size does not describe the screening head diameter.
A thread such as 3/4 in NPT or 1 in NPT is an enquiry input, not a confirmed stock model or substitute for BSP.
Prepare your enquiry
Send these starting details
- Filter-floor drawing, hole diameter and floor thickness
- Thread standard, nominal size and required engagement
- Media size, slot, flow per nozzle and backwash duty
- Nozzle quantity, material, inspection needs and destination
Agree the order requirements
Include quantity and destination together with the drawing revision. Specify any material traceability, inspection, packing, sample or delivery requirement.
The quotation defines the supply boundary, technical acceptance points and commercial terms.
Quality & documentation requirements →Questions about wedge wire filter nozzles
Can I request a 3/4-inch or 1-inch NPT nozzle?
Yes, state the requested size and whether the connection is male or female, together with the head and mounting dimensions. Final feasibility and dimensions are confirmed in the quotation drawing.
Are NPT and BSP connections interchangeable?
No. Identify the exact thread standard and connection form on the drawing so the correct mating interface can be reviewed.
When should I consider toggle bolt mounting?
It can be useful where underside access is limited. The actual mounting hole, plate thickness, locking arrangement and installation envelope must be reviewed.
Can a nozzle be selected by slot size alone?
No. Media retention, open area, head dimensions, flow per nozzle, pressure drop and backwash duty all affect the selection.
