Removable screen element
Coordinate element diameter, effective screen length, end closure and the removal path with the existing housing.
CUSTOM SCREEN ENQUIRY

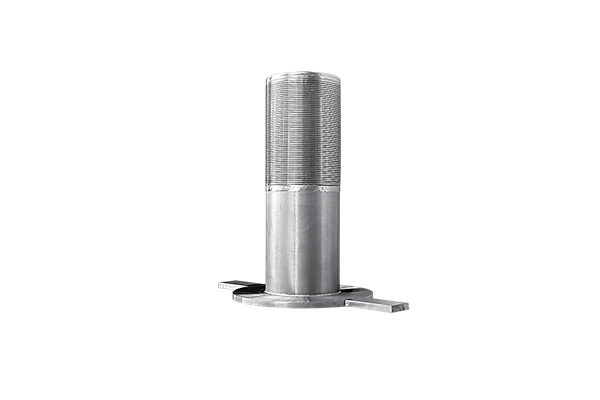

Wedge Wire Resin Trap Elements
Resin trap screens retain escaped resin or filter media before it reaches downstream equipment. Send the media specification and housing dimensions to discuss a removable wedge wire element or a flanged replacement configuration.
- Screen form
- Media capture elements
- Specification
- Drawing and process requirements reviewed for each enquiry
- Supply scope
- Screen element or replacement element; any housing or pressure-containing assembly is a separate scope review.
Price, minimum order quantity, sample arrangements, packing and lead time are confirmed in the quotation.
Configurations to discuss
Flanged replacement element
Review the flange pattern, seating face, seal and insertion length against the existing connection.
Specification and drawing checklist
These are the inputs needed to assess the screen. Final dimensions, material, slot and tolerances follow the accepted quotation and approved drawing.
| Parameter | Specify with your enquiry |
|---|---|
| Media to retain | Resin or media type, particle size distribution and smallest particle to be retained. |
| Slot opening | Required opening and tolerance, selected around the actual media and process duty. |
| Element dimensions | Outside diameter, effective screening length, overall length and housing clearance. |
| Material | State the required grade, operating medium, temperature and regeneration or cleaning chemicals. |
| End connection | Flange, mounting face, seal dimensions, insertion length and removal access. |
| Flow conditions | Normal and maximum flow with units, flow direction and expected solids or media loading. |
| Differential pressure | Operating, cleaning and maximum allowable differential pressure across the screen element. |
| Supply boundary | Element only, mounting parts or a separately reviewed complete assembly. |
North American drawings: keep the drawing's original units. Identify inches or millimeters, flow in GPM or m³/h, and pressure difference in psi, bar or kPa. Mark the complete pipe thread or flange standard where relevant.
Choose the slot from the media specification and retention duty. One slot opening is not suitable for every resin.
The housing pressure rating is different from the differential pressure that the screen element must withstand. Specify both where relevant.
Prepare your enquiry
Send these starting details
- Media / resin datasheet and minimum particle size
- Housing drawing, connection and available clearance
- Normal / maximum flow and allowable pressure drop
- Operating medium, temperature, quantity and destination
Agree the order requirements
Include quantity and destination together with the drawing revision. Specify any material traceability, inspection, packing, sample or delivery requirement.
The quotation defines the supply boundary, technical acceptance points and commercial terms.
Quality & documentation requirements →Questions about wedge wire resin trap elements
Is this page for the element or a complete resin trap?
The primary enquiry scope is the wedge wire screen element. Housing, flanges and pressure-containing parts must be defined separately in the enquiry and quotation.
Can I specify a 0.20 mm or 0.25 mm slot?
You may submit either as a requested slot for review. These values are not confirmed stock or capability claims; the correct opening depends on the media size and agreed manufacturing tolerances.
What information is needed for a replacement?
Provide the housing and element drawing, mounting interface, seal, effective screen length, required slot, material and removal clearance.
How are price, packing and delivery confirmed?
They are agreed after the element design, quantity and destination are reviewed. Include any inspection, documentation and packaging requirements in the first enquiry.
