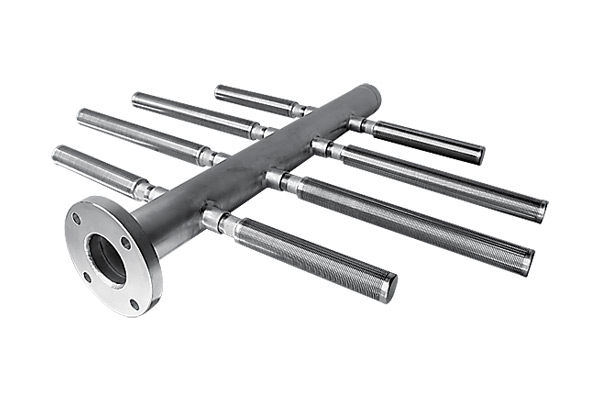

Header lateral layout
Screen laterals connect along a central or offset header. Define branch length, spacing, connection location and installation access.
CUSTOM SCREEN ENQUIRY
Header & Hub Lateral Assemblies
Header and hub lateral assemblies collect or distribute flow within media-filled vessels. Review the screen layout around the vessel geometry, inlet position, media, service flow and backwash duty. Header and radial forms are presented together for straightforward selection.
- Screen form
- Collector & distributor internals
- Specification
- Drawing and process requirements reviewed for each enquiry
- Supply scope
- Vessel internal screen assembly enquiry; hydraulic and mechanical requirements are agreed for the specific project.
Price, minimum order quantity, sample arrangements, packing and lead time are confirmed in the quotation.
Configurations to discuss

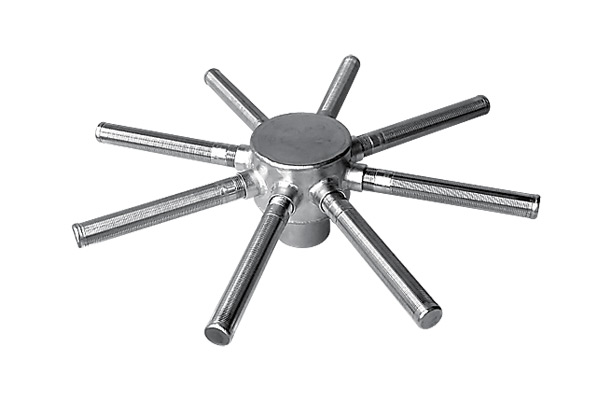

Hub / radial lateral layout
Screen arms radiate from a hub. Define hub position, arm count, angles, length and the vessel clearance at each arm.
Specification and drawing checklist
These are the inputs needed to assess the screen. Final dimensions, material, slot and tolerances follow the accepted quotation and approved drawing.
| Parameter | Specify with your enquiry |
|---|---|
| Vessel geometry | Internal diameter, head shape, internal obstructions and assembly location. |
| Inlet & main connection | Connection size, standard, orientation, elevation and flange or thread details. |
| Layout | Header / hub dimensions, lateral count, length, spacing or radial angles. |
| Screen construction | Screen-only or supported/base-pipe arrangement, slot, profile and support details. |
| Material & media | Required material grade, media type, particle size, bed depth and process chemicals. |
| Hydraulic duty | Service and backwash flow with units; permitted pressure drop and distribution requirements. |
| Mechanical duty | Media loading, differential pressure, support points and agreed assembly tolerances. |
| Installation | Manway opening, removable-arm requirements, piece numbering and assembly sequence. |
North American drawings: keep the drawing's original units. Identify inches or millimeters, flow in GPM or m³/h, and pressure difference in psi, bar or kPa. Mark the complete pipe thread or flange standard where relevant.
The header and radial layouts share one product page because they address the same collector / distributor procurement task. They are configured around the vessel.
An assembly photo cannot establish hydraulic distribution, mechanical strength or fit. Those requirements belong in the approved project drawing and acceptance criteria.
Prepare your enquiry
Send these starting details
- Vessel internal drawing and inlet / outlet locations
- Media type, minimum size, bed depth and loading
- Service / backwash flow and distribution requirements
- Manway access, connection standard and replacement drawings
Agree the order requirements
Include quantity and destination together with the drawing revision. Specify any material traceability, inspection, packing, sample or delivery requirement.
The quotation defines the supply boundary, technical acceptance points and commercial terms.
Quality & documentation requirements →Questions about header & hub lateral assemblies
What is the difference between header and hub laterals?
A header layout connects branches along a main pipe. A hub layout places arms radially around a central connection. Vessel geometry and the required flow distribution guide the choice.
Can the laterals be removable?
Include this requirement with the vessel access drawing. The connection type, tool access, arm length and assembly sequence need to be reviewed together.
Which connection details should I send?
State the full thread or flange designation, nominal size, facing or sealing detail, orientation and allowable envelope. Include a drawing of the mating connection.
Can I use the same slot for every media bed?
No. The media particle size, retention duty and hydraulic requirements govern slot selection. Submit the actual media information for the project.
