eric@kunyufencing.com →ABOUT WEDGE WIRE WORKS
Your dedicated wedge wire screen supply team.
Part of KUNYU Group. Focused on your screen requirement.
We connect OEMs, distributors and industrial buyers with specialist wedge wire manufacturing — bringing product specifications, custom production and export coordination into one project conversation.
- KUNYU team
- One contact for screen requirements, quotation and export coordination
- 6 core forms
- Panels, cylinders, sieve bends, baskets, intake screens and false bottoms
- Made to spec
- Slot, material, dimensions and connections reviewed for your application
THE PEOPLE BEHIND YOUR PROJECT
Specialist manufacturing.
A clear point of contact.
Wedge Wire Works is a dedicated wedge wire screen team within KUNYU Group, operated by Zhejiang Kunyu Wiremesh Co., Ltd. in Zhejiang, China.
Our role is to turn your equipment requirement into a clear screen enquiry: the right geometry, material, slot opening and order details. We coordinate with specialist manufacturing partners and keep the specification and commercial discussion with one team.
Whether you are developing an OEM component or replacing an existing screen, we start with how it fits, what it handles and what you need to verify.
MEET YOUR KUNYU SCREEN TEAM
Clear responsibilities at each step.
Manufacturing coordination
Our team reviews construction questions with the specialist manufacturing partner: slot, material, supporting structure, interfaces and operating duty.
Prepare your specification →Acceptance & export
Agree the drawing revision, required records, packing and delivery terms in the order. Use the acceptance template to make the review points explicit.
Download acceptance template ↓MANUFACTURING CAPABILITIES
Built around the screen’s working duty.

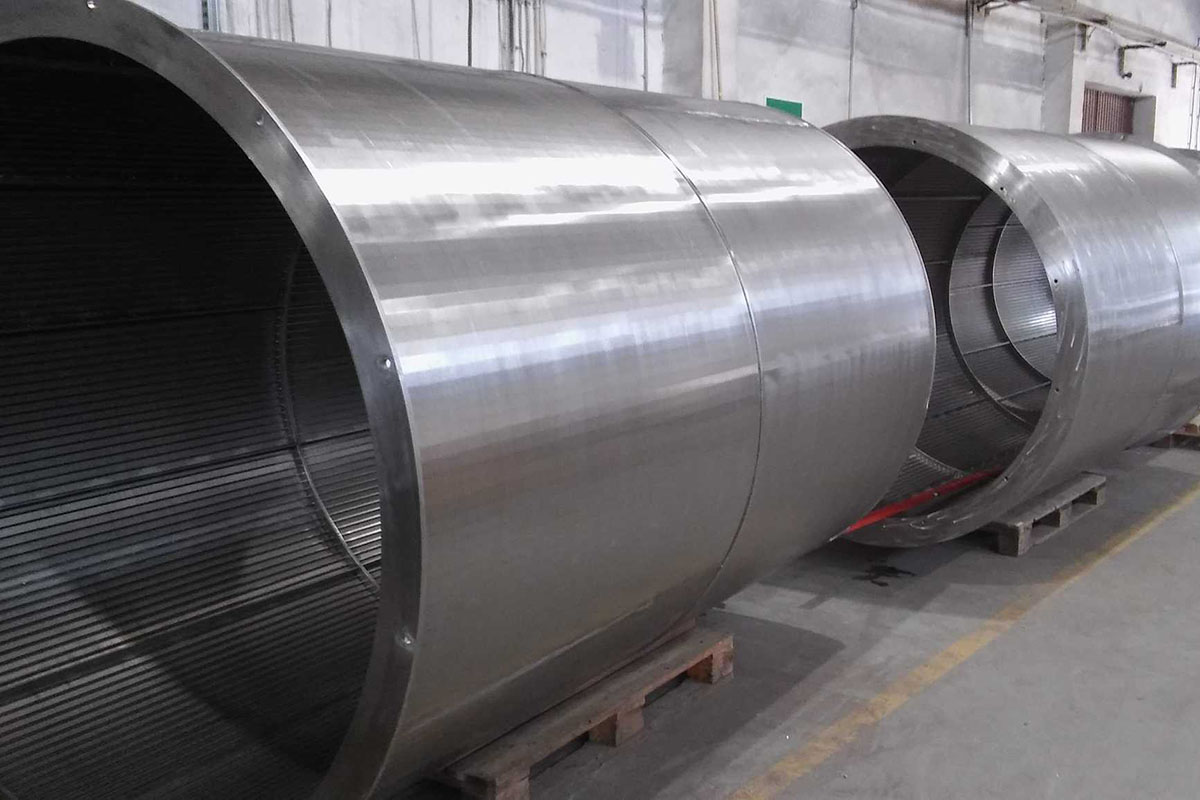

Our manufacturing partner’s range covers flat, curved and cylindrical profile-wire constructions for filtration, separation and dewatering.
- Profile wire & support construction
- V-shaped surface wire is welded to support rods to create continuous slots. Wire profile and support layout are selected around the required screen form and loading.
- Material options for the process
- Options include 304, 316L and duplex 2205 stainless steels, with other alloys reviewed by application. Material selection depends on the medium, temperature and corrosion conditions.
- Custom dimensions & interfaces
- Panels, cylinders and fabricated assemblies can be discussed against drawings or measured dimensions, including frames, flanges, supports and connection details.
- Agreed specification before production
- Confirm the nominal slot, tolerance, flow direction and acceptance criteria for the proposed construction. Final feasibility and supply terms are confirmed in the quotation.
OUR SCREEN RANGE
Six core forms. Different industrial duties.
Explore the screen shape closest to your equipment, then refine the specification with our team.
Screen panels
Flat screening surfaces for filtration and equipment internals.
Explore specifications →

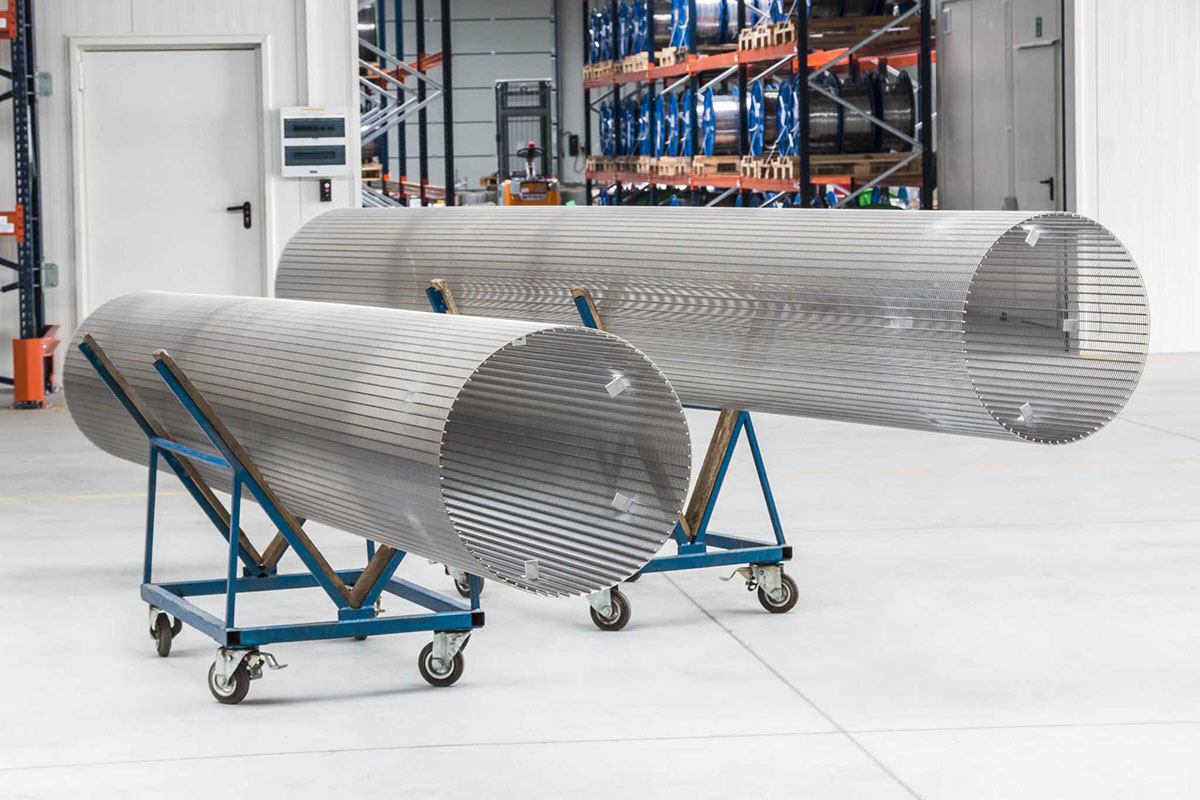

Cylinders & tubes
Cylindrical elements for strainers and process equipment.
Explore specifications →
Sieve bend screens
Curved surfaces for static separation and dewatering.
Explore specifications →
Screen baskets
Basket forms for separation and centrifuge equipment.
Explore specifications →
Water intake screens
Screen components for raw-water intake applications.
Explore specifications →
Mash tun false bottoms
Grain-bed support and wort drainage in brewing vessels.
Explore specifications →WORKING WITH OUR TEAM
From your drawing to an agreed order.
- 01 / SHARE
Define the requirement
Send a drawing, sample reference or measurements, together with the application, quantity and destination.
- 02 / REVIEW
Resolve the details
Review slot, material, dimensions, interfaces and operating conditions with our team and manufacturing partner.
- 03 / CONFIRM
Agree the order basis
Confirm the drawing revision, quotation, inspection scope, documentation, packing and delivery terms.
- 04 / COORDINATE
Plan production & dispatch
Coordinate the agreed production schedule, order records and shipment arrangements through your project contact.
QUALITY & ORDER CLARITY
Make acceptance measurable.
A useful quality discussion starts with the drawing and the checks that matter to your equipment. Tell us which dimensions, records or tests your project needs so their scope and availability can be agreed before the order.
Review quality & documentation →- Material grade and required material documentation
- Slot opening, measurement method and tolerance
- Overall dimensions, fit and connection interfaces
- Weld condition, surface finish and visual inspection
- Order identification, protective packing and dispatch records
PRACTICAL BUYER RESOURCES
Turn requirements into reviewable documents.
Start with a specification and acceptance checklist. Actual inspection records must relate to your ordered screen and agreed inspection scope.
Bring the right enquiry inputs
Screen form, dimensions, slot, material, operating conditions, quantity and destination — with space for unknown details.
Download the screen RFQ checklist ↓Agree what needs checking
Record the required characteristic, inspection method, document and review status. This is an editable planning template, not a completed inspection report.
Download the acceptance template ↓See a specification review example: replacement screen panel
Illustrative buyer brief. The inputs below demonstrate our enquiry checklist. They are not a completed customer project, a test result or a confirmed production specification.
| Buyer input (illustrative) | What the team needs to clarify |
|---|---|
| Flat panel, 600 × 400 mm | Overall or active screening dimensions? Confirm frame, supports, fixing holes, datums and fit tolerances. |
| 316L stainless steel, nominal slot 0.5 mm | Confirm the process medium, temperature, flow direction, slot tolerance and inspection method. Nominal slot is not a particle-removal guarantee. |
| 20 replacement panels | Confirm drawing revision, quantity per equipment set, sample review if needed, packing and delivery destination. This example quantity is not an MOQ. |
| Dimensional inspection requested | Identify critical measurements, the required record and acceptance criteria in the order specification. |
Next step: use these answers to establish a proposed construction, quotation and agreed acceptance checklist. Feasibility, price and delivery timing are confirmed for the actual enquiry.
Prepared by the Wedge Wire Works team · Content reviewed
CUSTOM SCREEN SUPPLIER REVIEW
Compare suppliers against the same screen duty.
For an OEM or replacement project, a useful shortlist depends on a reviewable specification and a clear supply role. Wedge Wire Works coordinates the enquiry, quotation and export with specialist manufacturing partners; the agreed order defines the production and inspection scope.
| Check | What to verify with each supplier |
|---|---|
| Role and accountability | Who operates the contact team, who makes the screen, and who resolves drawing and order changes? |
| Technical fit | Which drawing revision, slot tolerance, material grade, working face, load and equipment interfaces are in scope? |
| Inspection evidence | Which dimensions and slots will be checked, by what method and sampling plan, and what records are included? |
| Commercial basis | Confirm quantity, packing, delivery destination, trade terms and any sample or approval steps in the quote. |
Ask us to review your drawing and required documents. Our quality and documentation checklist explains how to agree order-specific evidence; the screen specification guide helps make quotations comparable. Screen-specific manufacturing or test claims require records for the actual order.
BEFORE YOU GET IN TOUCH
A few practical answers.
Have a drawing or an existing screen? You can start the conversation with the information already available.
Open the specification checklist →Is Wedge Wire Works part of KUNYU Group?
Yes. Wedge Wire Works is a dedicated wedge wire screen team within KUNYU Group, operated by Zhejiang Kunyu Wiremesh Co., Ltd. We coordinate custom screen supply with specialist manufacturing partners.
Can you help with OEM and replacement screens?
We welcome enquiries based on drawings, measured dimensions or existing-screen photos. OEM and replacement requirements are reviewed for geometry, slot, material, interfaces and operating duty before the proposed construction is quoted.
Which industries do you supply screens for?
Our screen range addresses water and wastewater treatment, mining and minerals, food and beverage processing, industrial filtration and OEM equipment applications. Suitability is reviewed for each process and screen construction.
What should I include in an enquiry?
Include the screen form, drawing or dimensions, nominal slot opening, material, application, quantity and delivery destination. Add operating conditions and any required inspection documents. If some details are unknown, send what you have so we can identify the remaining inputs.
Let’s get your screen specification moving.
Share your drawing, dimensions or existing-screen photos with the KUNYU screen team.
Email eric@kunyufencing.com or WhatsApp: +86 186 6719 9126. Attach drawings in your chosen app.
