Externally fed drum
Confirm the outside screening face, feed arrangement, scraper position and spray-cleaning clearance.
CUSTOM SCREEN ENQUIRY

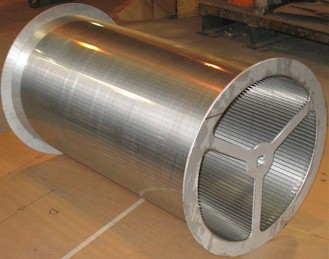

Rotary Drum Screen Replacement
Start a replacement drum enquiry with the existing equipment drawing, screen dimensions and operating duty. The review covers the wedge wire screening cylinder and its mechanical interfaces, including end rings, shaft details and scraper clearance.
- Screen form
- Replacement drums
- Specification
- Drawing and process requirements reviewed for each enquiry
- Supply scope
- Screening drum or screen assembly, with the supply boundary agreed in the quotation.
Price, minimum order quantity, sample arrangements, packing and lead time are confirmed in the quotation.
Configurations to discuss
Internally fed drum
Confirm the internal screening face, solids discharge route, support arrangement and cleaning access.
Specification and drawing checklist
These are the inputs needed to assess the screen. Final dimensions, material, slot and tolerances follow the accepted quotation and approved drawing.
| Parameter | Specify with your enquiry |
|---|---|
| Overall dimensions | Outside diameter, overall length and effective screening length; provide the required units. |

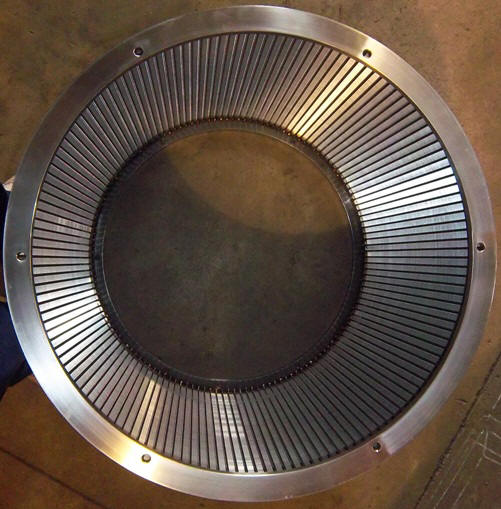

| Screen construction | Slot opening and tolerance, wire profile, support arrangement and screening face. |
| Material | Specify the required stainless grade, medium, operating temperature and cleaning chemicals for review. |
| End rings & interfaces | End-ring dimensions, bolt patterns, shaft bores, journals and drive-side reference. |
| Rotating duty | Operating speed, rotation direction, loading and required inspection or balancing criteria. |
| Fit & clearance | Radial runout requirement, concentricity, scraper gap and spray-bar envelope. |
| Process conditions | Feed flow, solids characteristics, duty cycle and cleaning method. |
| Acceptance documents | Agreed drawing revision, dimensional inspection points and material documentation requested with the enquiry. |
North American drawings: keep the drawing's original units. Identify inches or millimeters, flow in GPM or m³/h, and pressure difference in psi, bar or kPa. Mark the complete pipe thread or flange standard where relevant.
Compatibility is checked against the supplied dimensions and interfaces. A brand or model name alone does not establish fit.
A replacement screening drum is not a complete screening machine. State separately if the project also needs drive, frame, spray system or controls.
Prepare your enquiry
Send these starting details
- Existing equipment make, model and drum drawing
- Drum OD, screen length and end-ring / shaft measurements
- Photographs of the feed, scraper, drive and discharge
- Slot, material, operating speed, quantity and destination
Agree the order requirements
Include quantity and destination together with the drawing revision. Specify any material traceability, inspection, packing, sample or delivery requirement.
The quotation defines the supply boundary, technical acceptance points and commercial terms.
Quality & documentation requirements →Questions about rotary drum screen replacement
Can you review a replacement for an existing machine?
Yes. Send the machine reference and the existing drum drawing or measured interfaces. Any proposed fit is confirmed against an approved drawing before an order is agreed.
Is a 24-inch drum a standard stocked size?
No standard stock size is stated here. The 24-inch example in the reference material belongs to another manufacturer; your required dimensions need a separate review.
How should I specify the flow direction?
Identify whether feed is outside or inside the drum and mark the screening face, direction of rotation and solids discharge on the drawing.
What determines the quotation and lead time?
The screen geometry, slot, material, rotating interfaces, inspection requirements and quantity are reviewed first. Price, packing and delivery timing are then stated in the quotation.
Related screen products
Discuss your screen requirement.
Send the details you have. Start with the drawing, application and quantity.
Email eric@kunyufencing.com or continue on WhatsApp. Attach drawings in your chosen app.
